How to Learn CNC Programming

How to Learn CNC Programming
Written by prodigitalweb

CNC, or Computer Numerical Control, refers to a process used in the manufacturing sector that involves the use of computers to control machine tools. This technology was developed to create more precise and efficient manufacturing methods.

CNC programming is essentially the process of programming a CNC machine to perform specific tasks. This process requires a deep understanding of both the capabilities of the machine and the language it uses to operate. The language, known as G-code, is a series of instructions that guide the machine’s movements.

Learning CNC programming opens up a world of manufacturing possibilities. Not only does it allow for the creation of complex and precise components, but it also increases the efficiency of production processes. In this digital age, CNC programming has become a vital skill in industries such as aerospace, automotive, and even jewelry making.

In the following sections, we will delve deeper into the world of CNC machines, the basics and advanced techniques of CNC programming, and the potential career opportunities in this field.

What are CNC Machines?

According to Amastone, leader in selling CNC tools, CNC machines are advanced tools used in the manufacturing sector that are controlled by computer programs. These machines can interpret and execute commands, allowing them to perform various tasks with a high degree of accuracy and repeatability.

A CNC machine operates on the Cartesian coordinate system (X, Y, Z) for 3D motion control. Parts of a machine can move linearly along these axes or can rotate about them. This flexibility allows for the manufacturing of parts with intricate details and complex geometries that would be impossible to achieve with manual machining.

There are various types of CNC machines, each suited to a specific purpose.

Some of the most common types include:

  • CNC mills, which use rotary cutting tools to remove material;
  • CNC lathes, which rotate a workpiece against a cutting tool;
  • CNC routers, which are often used for cutting and shaping large pieces of wood, metal, or plastic.

Each CNC machine type requires a specific type of programming to guide its operations. This programming is created using G-code or, in more complex cases, M-code. These codes instruct the machine on factors such as speed, direction, and depth of cut.

Understanding the types and functions of CNC machines is a crucial step toward mastering CNC programming, as it provides the necessary context for understanding how and why certain programming commands are used.

Basics of CNC Programming

CNC programming is the process of creating a set of instructions for a CNC machine to follow. The most commonly used programming language is G-code, a standardized language that tells a machine how to move, where to move, and what path to follow.

The first step in CNC programming is to understand the Cartesian Coordinate System. CNC machines operate on this system, which includes X, Y, and Z axes. The X and Y axes represent horizontal movements, while the Z axis represents vertical movement.

Next, it’s important to learn about the different types of movements a machine can make. Rapid or straight-line movements are common, and so are circular movements. Knowing when and how to use these movements is a key aspect of CNC programming.

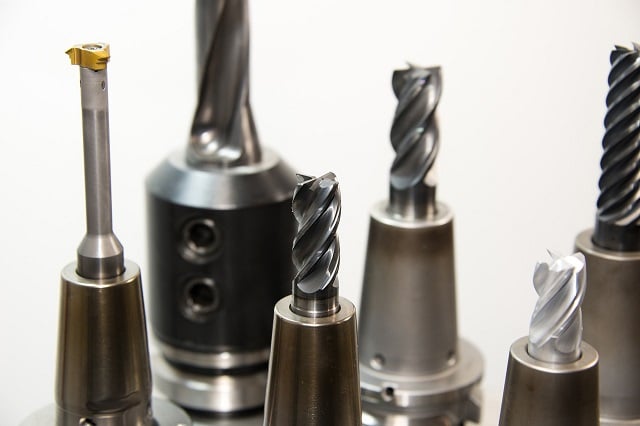

To program a CNC machine, you’ll also need to know about feed rates (the speed at which the tool moves through material), spindle speed (the speed at which the tool or workpiece rotates), and tool selection (different tools are used for different operations).

Finally, understanding the process of creating and editing a CNC program is crucial. This often involves using a CAD/CAM software package to design the part and generate the necessary G-code. However, a skilled programmer may also need to manually edit the G-code to optimize the machining process.

Mastering these basics will provide a solid foundation for learning more complex CNC programming techniques.

Advanced Techniques in CNC Programming

As you gain proficiency in the basics of CNC programming, you can start exploring more advanced techniques. These techniques allow for greater precision, efficiency, and complexity in your CNC operations.

  1. Macro Programming: This involves creating sets of instructions that can be used repeatedly. Macros are useful for operations that need to be performed multiple times or across multiple parts. For example, you might create a macro to drill a series of holes at specific locations on a part.
    Example: O0001 (Macro for drilling a hole) G90 G80 G40 G0 G54 G28 T1 M06 (Select tool 1) G43 H01 (Tool length compensation) G0 G90 G54 X0. Y0. S1200 M03 (Position tool and start spindle) G43 H1 Z1. M08 (Activate tool length compensation and coolant) G81 G99 X0. Y0. Z-1. R0.1 F20. (Perform drilling cycle) G80 G28 Z0. M09 (Cancel cycle, move to reference point, stop coolant) M05 (Stop spindle) M30 (End program)
  2. High-Speed Machining (HSM): This is a method that uses high spindle speeds and feed rates to achieve high material removal rates. This is especially useful for softer materials and can significantly reduce machining time.
    Example: N10 G90 (Absolute positioning) N20 G54 (Select work coordinate system) N30 S12000 M03 (Set spindle speed and start spindle) N40 G00 X10. Y20. (Rapid move to initial position) N50 G01 Z-5. F1000 (Linear move to start cutting) N60 X50. F2000 (Cut along the X-axis) N70 Y30. (Cut along the Y-axis) N80 X10. (Cut along the X-axis) N90 Y20. (Cut along the Y-axis) N100 G00 Z5. (Rapid move to safe height) N110 M05 (Stop spindle) N120 M30 (End program)
  3. Multiaxis Programming: Traditional CNC machines operate on three axes (X, Y, and Z). However, advanced machines can operate on five or even six axes. This allows for the creation of extremely complex parts, but it also requires a more complex form of programming.

Please note that the codes mentioned here are just examples and might need to be adjusted based on the specifics of your machine and project. Always consult with your machine’s user manual or a trained professional before attempting to run a program.

Career Opportunities in CNC Programming

CNC programming is a sought-after skill in the modern manufacturing industry. As automation and precision become increasingly important, the demand for skilled CNC programmers is on the rise.

  1. CNC Programmer: This is the most direct application of the skills. CNC Programmers are responsible for creating and updating CNC programs, optimizing them for efficiency, and troubleshooting any issues that arise during production.
  2. Machinist: A machinist operates CNC machines to create parts from metal or other materials. While some machinists may not do extensive programming, an understanding of CNC programming can be a significant asset, allowing for on-the-fly adjustments and problem-solving.
  3. Manufacturing Engineer: These professionals often work in a more supervisory role, overseeing the production process and working to improve efficiency and quality. Knowledge of CNC programming can be invaluable in this role, as it provides a deeper understanding of the manufacturing process.
  4. CAD/CAM Technician: CAD/CAM Technicians use computer software to design parts and create CNC programs. This role is a blend of design and manufacturing, making it a great fit for someone who enjoys both aspects.
  5. Quality Control Inspector: These professionals are responsible for ensuring that all parts meet quality standards. While they do not typically do programming, an understanding of CNC programming can help them better understand how issues may arise during the manufacturing process.
  6. CNC Machine Sales Representative: These professionals need a comprehensive understanding of CNC machines and their capabilities to effectively demonstrate and sell them to potential buyers. Knowledge of CNC programming can be a significant advantage in this role.

These are just a few of the many career paths available for someone skilled in CNC programming. With industries from aerospace to automotive to furniture production relying on CNC machines, the opportunities are vast and varied.
