What is Beamforming?

Beamforming is a radio frequency signal processing technique in which an array of multiple antennas are employed in directional signal transmission and reception. It is a kind of radio frequency management used to send strong, focused signals to a targeted device. The purpose of combining elements in an antenna array is to have signals in a particular angle experience constructive interference while other angles will experience destructive interference. Beamforming can be employed at receiving and transmitting ends to attain spatial selectivity. It is used in communication, radar, sonar, and acoustics. In addition, Beamforming is employed in Wi-Fi networking and 5G.

In wireless communication, it is used to improve the capacity and quality of network coverage. Using multiple antennas; Beamforming increases the signal strength in a particular direction. And also it reduces the interference from signals arriving from other directions. Therefore, in wireless networks that suffer from limited bandwidth and high levels of interference, it can improve the data rate and higher signals to noise ratio.

Beamforming can also be used to capture sound from a particular angle and reduce noise from other angles in audio processing. It is helpful to capture a speaker’s voice while reducing the background noise. Therefore it is very much employed in acoustics.

Analog Beamforming and Digital Beamforming are the primary types of Beamforming. In Analog, the antenna signals are combined in an analog circuit to form a directional beam. And in Digital, the signals from the antennas are digitized and then combined in a digital signal processor to create the beam. Digital Beamforming is more flexible and has better performance when compared with Analog, but it requires more computational resources.

Beamforming is an important technique to improve wireless communication performance and audio processing systems. It enables higher data rates, improved coverage, and reduced interference. These qualities make Beamforming a key enabler for many modern communication and audio processing applications.

Brief History of Beamforming:

The history of Beamforming techniques can be traced back to the early days of radio communication. Guglielmo Marconi and Reginald Fessenden made significant contributions to its development in the early 20th Century. By 1920 the concept of directional radio transmission was employed.

It was primarily used in military and government communication systems in the 1950s. It helped the military and government agencies to provide more secure and reliable communication over very long distances. In the early days, it was achieved by using multiple antennas and combining the singles in a specific way to create a directional beam to reduce interference from signals coming from other directions.

In the 1970s, there was a pace in advanced Beamforming techniques due to the increase in demand for commercial wireless communication and cellular communication growth, the engineers of digital signal processing and microelectronics. Its development made it possible to provide high-quality mobile communication to the growing number of users.

Beamforming has become a key component of modern wireless communication systems since 1990. During this time, the use of MIMO (multiple-input, multiple-output) technology became widespread. MIMO technology enabled multiple antennas at both the receiver and transmitter ends. As a result, it significantly boosts capacity and data rates more than traditional single antenna systems.

With the rapid growth of wireless communication and the increasing demand for bandwidth, it has become increasingly essential and remains a critical component of modern wireless networks.

In recent times, the development of 5G; wireless communication has been a major driver of innovation in Beamforming technology. 5G networks are designed to provide high-speed, low-latency communication over large areas. This Beamforming technology plays a crucial role in achieving the goals of 5G. With the increasing demand for bandwidth and the growing importance of wireless communication, the demand for Beamforming technology is very much increased.

Purpose of Beamforming:

We know it is a signal processing technique used to improve the wireless communication and audio processing system by controlling the directional signals transmitted or received.

In wireless technology, it increases the signal strength in a specific direction and reduces interference from other angles. It is achieved by combining the signals from an array of multiple antennas to create a directional signal beam. Besides, it enhances the signal-to-noise ratio and reduces signal interference. Beamforming can also be used to dynamically adjust the beam direction with respect to the changes in the environment, such as the movement of users or changes in the radio frequency (RF) environment.

The benefits of Beamforming in wireless technology are numerous. It directs the signal beam in the direction of the receiver, which can significantly improve the signal-to-interference ratio and increase the data rate capacity and the network’s overall capacity. In addition, Beamforming helps to reduce the amount of interference caused by the signals from other sources; thereby, it improves the quality and reliability of wireless communication.

Further, in audio processing, it is employed to capture the sound from a particular angle and reduce the noise from other directions. It is the concept used in applications such as conferencing systems, where the focus is to capture the speaker’s voice, and the noise in the background is reduced. Beamforming enhances the performance of microphone arrays by directing the beam in the speaker’s direction and reducing the noise from other directions.

Therefore, Beamforming aims to provide efficient and effective means of transmitting and receiving signals in wireless communication and audio processing systems.

Basic Concepts of Beamforming:

  • Directionality
  • Antenna Arrays
  • Phased Arrays
  • Signal processing
  • Steering

All the above are the basic concepts.

Directionality

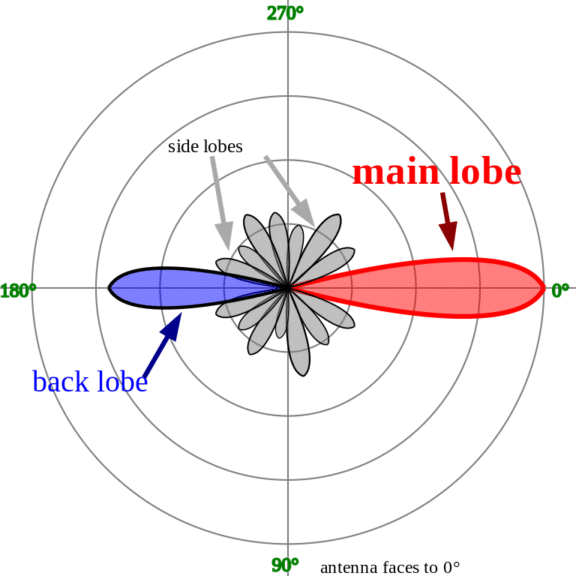

sidelobes One of the basic concepts of Beamforming is its directionality. Directionality refers to the ability to transmit or receive signals in a specific direction. It is achieved by combining the signals from multiple antennas in a specific way to create a directional beam of the signal. The directional beam increases the signal strength in the preferred direction and reduces the interference from all other directions.

Antenna Arrays

Antenna arrays are arrays of multiple antennas that are used to transmit or receive signals. The signals from individual antennas are combined more specifically to create a directional beam to enhance communication performance or the audio processing system.

Phased Arrays

It also involves the use of phased arrays. In phased arrays of antennas, the phase of the signals from the individual antennas are arranged in a more specific way to create a directional beam. The phase of the signals from individual antennas is adjusted to combine the signals in the desired direction and destructively in other directions resulting in the directional beam of signals.

Signal Processing

At the signal processing stage, the signals from the antennas are processed in a specific way to create a directional beam. The processing can be performed in real-time or offline. Digital signal processing techniques are employed at this stage. The signal processing algorithms used can vary depending on the specific application and requirements.

Steering

Another key concept employed is steering. It is the ability to steer the beam of signals in the most specific direction. It can be achieved in real-time. The best example of it is tracking a moving car in real time. It can respond to changes in the environment. The steering concept enables the wireless communication and audio processing systems to adjust the beam direction dynamically, improving the system’s performance and flexibility.

Therefore the basic concepts of Beamforming include directionality using antenna arrays, phased arrays, signal processing, and Steering, directing the beam of signals in the direction of the receiver or speaker. As a result, it improves the coverage, increases the capacity and signal-to-noise ratio, reduces interference, and enhances signal performance.

Antenna Array Configuration:

It refers to the arrangement of multiple antennas in a Beamforming system. Since the antennas are used to send and receive signals, the arrangement of antennas is crucial since it can impact the system’s performance. Therefore, the configuration of the antenna array is a crucial aspect since it determines the spatial arrangement of the antennas for a significant impact on the performance. The choice of antenna array configuration depends on the application’s specific requirements, such as direction, the size of the array, and the available space for the antennas.

Some common antenna array configurations are:

  • Linear Arrays
  • Planar Arrays
  • Spherical Arrays
  • Conformal Arrays

In Linear array configurations, the antennas are linearly arranged with equal spacing between the individual antennas. It is the most straightforward array configuration that can provide exemplary performance in unidirectional. But it has limited performance in two-dimensional Beamforming. And it is not at all suitable for three dimensional.

One of the most common antenna array configurations is the linear array, where the antennas are arranged in line with equal spacing between the antennas. The linear array is the simplest array configuration and provides good directivity for Beamforming in a single direction. However, the linear array has limited performance in two-dimensional Beamforming and is not suitable for Beamforming in three dimensions.

In the Planar Array configuration, the antennas are arranged on a two-dimensional plane with equal spacing between the antennas. It offers the best performance than the linear array in two dimensions. And, it is often used in wireless communication systems and radar systems. It provides coverage in multiple directions.

In three dimensions, the spherical array is the best choice. In a spherical array, the antennas are arranged on the surface of a sphere, with equal spacing between the antennas. The spherical array configuration is the best-performing array of all other arrays. It is often used in satellite communication, GPS, and radar systems. It provides coverage in all directions.

In applications like mobile communication systems and military radar systems, the antennas need to be mounted on objects of a particular shape. In that case, a conformal array is used. Further, in a conformal array, the antennas are arranged on a surface that conforms to the object’s shape. Therefore, the conformal array performs better than the planar array. And it is used in mobile applications.

Therefore the antenna array configuration plays a crucial role and impacts the performance. The choice of array configuration depends on the specific requirements of applications and can be optimized to achieve the desired performance. The number of antennas used in an antenna array can also impact the system’s performance.

Increasing the number of antennas in an array can improve the directivity and reduce the sidelobes of the beam. But they can increase the complexity and the processing requirements. Therefore, the need for an optimal number of antennas in a specific system depends on the system’s requirements. Further, it is the trade-off between performance and complexity.

Steering Vector and Direction of Arrival (DOA):

The Steering Vector and Direction of Arrival (DOA) are the two critical components of Beamforming. It helps to control the direction of the beam. In the system, multiple antennas are used to receive or transmit signals. Beam direction is controlled by adjusting the phase and amplitude of the signals from the individual antennas. The steering vector is a mathematical representation of the phase and amplitude response of a particular antenna element in the system.

The steering Vector calculates the relative positions and the relative phases of the signals from the antennas. By adjusting the phase and amplitude of the antenna signals, the steering vector can control the direction of the beam. In addition, the steering vector is a mathematical representation of an antenna element’s amplitude and phase. The steering Vector considers the antenna elements’ relative positions and the relative phases of the signals from every antenna in the system. By adjusting the phase and amplitude of the signals from the individual antennas, the steering vector can control the direction of the beam.

The Direction of Arrival (DOA) refers to the direction of the signal from the antenna array. The DOA is the crucial factor that determines the direction of the beam. To control the beam direction, the DOA must be estimated accurately. Various methods are employed in estimating the DOA, including time delay estimation, signal energy analysis, and subspace-based methods.

In the time delay estimation method, the time delay between the signals received by the antennas is measured, and these details are utilized to estimate the DOA. And, In Signal energy analysis, the energy distribution of the signals across the antennas is used to estimate the DOA. In the subspace-based method, the DOA is estimated by analyzing the subspace spanned by the signals received.

Once the DOA is estimated, the antenna system can adjust the phase and amplitude of the signals from the individual antennas to create direction beams that point in the direction of the desired signals. DOA helps to converge the energy of the transmitted or received signals in the desired. And it helps to reduce the interference from unwanted signals.

With the Steering vector and DOA components, Beamforming can control the phase and amplitude of the particular antenna element and adjust the signal’s phase and amplitude to create a directional beam.

The Array Response and Beamforming Techniques:

The Array Response and Beamforming Techniques are the critical components in Beamforming. The array response is a mathematical representation of the collective behavior of all antennas in the antenna try. It gives how the antennas in the array respond to the incoming signals and how they contribute to the overall radiation pattern of the array. In addition, the array response is used to control the direction of the beam bud, adjusting the phase and amplitude of the signals from the individual antennas.

The Beamforming techniques are methods used to control the directions of the beam in the system. There are several beamforming techniques employed. Each of them has its own pros and cons.

Some of the most common techniques are Conventional, Adaptive, Null Steering, and Maximum Ration Transmission (MRT).

The Conventional Beamforming technique uses a fixed Beamforming weight vector to control the direction of the beam. The weight vector is calculated based on the array response and the desired beam direction. This technique is straightforward to implement. However, it has minimal flexibility in terms of controlling the beam direction.

Adaptive Beamforming is a more complex technique. It uses an adaptive algorithm to adjust the real-time Beamforming weight vector based on the signals. Though it is complex, it has more flexible control of the beam direction. However, it is more challenging to implement. The adaptive algorithm needs to track the changes in the incoming signals and adjust the Beamforming weight vector accordingly.

The Null Steering technique uses the array response to create a null in the radiation pattern in a specific direction. It helps to reduce the interference from signals reaching from that direction. This technique is useful for reducing interference from unwanted signals. However, it could not control the directional beam.

The Maximum Ratio Transmission (MRT) technique maximizes the power of the transmitted signals in the required direction. It also minimizes the power of the signals in other directions. Therefore, it is useful to increase the power of the transmitted signals in the desired direction. But it could not control the directional beam.

The array response describes the collective behavior of the antennas in the antenna array, whereas the Beamforming technique controls the direction of the beam.

Types of Beamforming:

There are some common types of Beamforming. However, the type used in a specific application depends on its requirement and availability of recourses.

They are

  • Conventional Beamforming
  • Adaptive Beamforming
  • Null Steering
  • Maximum Ratio Transmission Beamforming
  • Linear constraint Minimum Variation
  • Capon Beamforming
  • Music or Multiple Signal Classification

Conventional Beamforming:

It is a simple beaming technique that uses a fixed Beamforming weight vector to control the beam direction. First, the weight Vector is calculated based on the array response and the beam direction. The Array Response is a mathematical representation of the behavior of the antenna array. It describes how the signals from the individual antennas combine to form the overall signal transmission pattern of the array. Then, the Weight Vector is calculated to steer the beam in the preferred direction. It is the best technique that is easy to implement but has limited abilities, such as changing signal conditions.

It has several limitations; they are

The direction of the beam is fixed, and the Weight vector cannot be adapted to changing signal conditions. This means performance will be suboptimal if the signals come from multiple directions.

It does not have the ability to reject interference signals that are present in the environment. As a result, conventional Beamforming will significantly deteriorate the system performance if the interference signal is very strong. In addition, it can have significant sidelobes in the radiation pattern that will affect the system’s dynamic range.

Despite the limitation, it is widely used in plenty of applications. For example, it is widely used where the signal direction is known and the interference signals are weak.

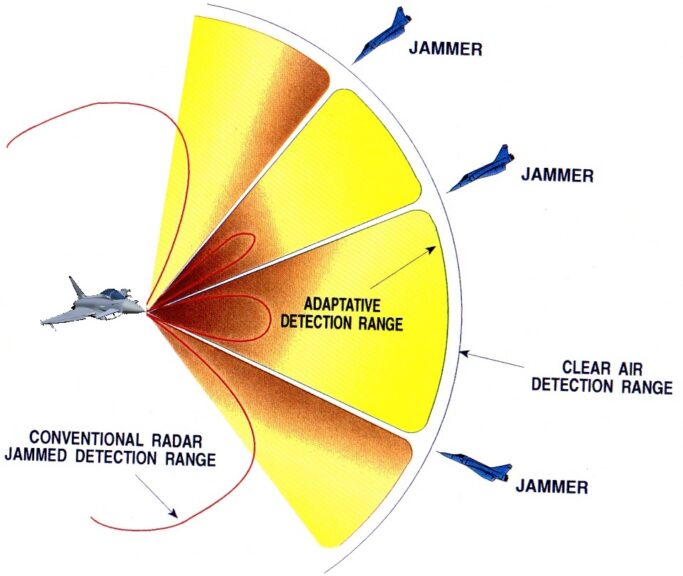

Adaptive Beamforming:

It is the more advanced technique that uses adaptive algorithms to adjust the weight vector in real-time based on the incoming signals. It allows more flexible control of the beam directions, though it is complex to implement. Moreover, it allows the beam direction to adapt to changing signal conditions to improve performance. There are several approaches employed, such as LMS (Least Mean Squared) Algorithm, RLS (Recursive Least Squared) Algorithm, and MVDR (Minimum Variance Distortionless Response) Algorithm.

The LMS algorithms use the least mean squared error criterion to adjust the weights. It adjusts the weights iteratively based on the error between the desired signal and the actual signal receiving.

RLS (Recursive Least Squared) Algorithm is a more advanced technique that uses recursive least squares criterion to adjust the weights. As a result, RLS provides faster convergence and better robustness to noise compared to the LMS algorithm.

MVDR (Minimum Variance Distortionless Response) Algorithm minimizes the total output power while maintaining the desired signal. As a result, it provides the best performance in terms of sidelobes suppression and interference rejection.

Adaptive Beamforming has several advantages over conventional. They are improved directionality and performance, improved system performance in the presence of interference, and improved sidelobe suppression that increases the dynamic range. In addition, Adaptive Beamforming provides a more advanced and flexible solution compared to conventional Beamforming.

Null Steering BeamForming:

Null Steering, the steering vector is used to calculate the relative positions of the antennas and relative phases of the signal received by each of the antennae. The signals’ relative phases are adjusted to create a null in the direction of the interference source. That can be achieved by creating destructive interference between the signals received, which cancels the signals from the interference source. Null Steering is commonly used in wireless communication systems, where it improves the signal-to-interference ratio (SIR). It provides improved performance in an interference-rich environment. It is also used in radar systems to reduce interference from clutter. In sonar systems, it reduces interference from noise sources.

Maximum Ratio Transmission (MRT) Beamforming

MRT is used in wireless communication systems to transmit signals in the direction of the intended receiver. It aims to maximize the power of the transmitted signal in the direction of the intended receiver and minimize the power of transmission in other directions.

It is accomplished by adjusting the phase and amplitude of the signals from each antenna array. The steering vector is used to find the relative positions of the antennas and the relative phases of the signals received by each antenna. The relative phases of the signals are adjusted to create constructive interference in the direction of the intended receiver.

It increases the power of the transmitted signals in that direction. MRT Beamforming is a highly directional beam. It improves signal quality and reduces interference in the desired signal. It provides improved performance in both line-of-sight and non-line-of-sight environments in wireless communication. Besides, it is also used in MIMO communication systems to improve data rates and to increase system capacity.

Therefore MRT is used to maximize the power of transmitted signals in the direction of the intended receiver while minimizing the power of transmitted signals in the other directions.

Linear constraint Minimum Variation (LCMV) Beamforming:

LCMV improves the quality of the transmitted signal. It minimizes the total power of the weights while constraining the weights to meet a specific set of linear constraints. The weights are designed to meet the liner constraints, such as the direction of the beam or the constraint on the total power of the weights.

The Beamforming weights are used to adjust the phase and amplitude of the signals from each antenna in the array. LMCV provides a beam pattern that reduces the sidelobe levels and improves the signal quality. It is commonly used in wireless technology and MIMO (Multiple-Input Multiple-Output) communication systems. Its goal is to minimize the total power of the weights while constraining the weights to meet the specific set of linear constraints.

Capon Beamforming:

It improves the quality of the transmitted signals in wireless communication. The objective of Capon is to minimize the output power in the presence of noise and interference. The objective is reached by designing the weights based on the covariance matrix of the received signals. The covariance matrix represents the relationship between the signals received by each antenna in the array. By using the covariance matrix, the output power is minimized to reduce the impact of noise and interference on the transmitted signal. As a result, Capon provides beam patterns with improved signal quality and reduced sidelobe levels.

MUSIC or Multiple Signal Classification Beamforming:

MUSIC, or Multiple Signal Classification, is used in wireless technology to determine multiple signals’ direction of arrival (DOA). The goal is to provide a solution to the direction of arrival estimation problems in the wireless communication system.

MUSIC uses eigenvectors of the covariance matrix of the received signals to estimate the DOA of multiple signals. The covariance matrix represents the relationship between the signals received by each antenna in the array. The eigenvectors of the covariance matrix provide information about the DOA of the multiple signals. MUSIC provides a beam pattern with improved signal quality and reduced sidelobe levels. It can improve the quality of the transmitted signal and minimize the impact of noise and interference on the signal. It provides a solution to the direction of arrival estimation problem in wireless communication systems. MUSIC can improve the quality of the transmitted signal and reduce the impact of noise and interference on the signal.

Hybrid Beamforming:

Hybrid forming combines the advantages of both conventional and adaptive forming. In hybrid forming, the weights are determined by combining fixed and adaptive components. The fixed component provides the desired directionality and interference rejection. An adaptive component provides improved performance in the presence of changing signal conditions.

The following are the different approaches to hybrid forming:

  • Conventional Beamforming+ Adaptive Beamforming
  • Conventional Beamforming+ Digital Beamforming
  • Analog Beamforming + Digital Beamforming

Hybrid Forming provides a flexible and efficient solution combining conventional and adaptive Beamforming benefits.   It used a combination of fixed and adaptive components of hybrid forming. As a result, it provides improved directionality, interference rejection, and dynamic range.

Advantages of Beamforming:

It is widely used in wireless telecommunication systems. And, it is because it has several advantages over other traditional communication technologies.

It offers:

  • Improve Signal Quality
  • Increase the range of Signal coverage
  • It can offer Increased Spectral Efficiency
  • Minimize the Interference
  • Increase the capacity of the wireless communication
  • Increase the Security

Beamforming allows the signal energy to direct it in a specific direction. It reduces the impact of noise and interference on the signal. It improves signal quality and reduces signal degradation, which is critical for reliable communication.

Directing the signal in a specific direction increases the signal range. Therefore, it is very much useful in wireless communication systems that require long-range signal transmissions, such as satellite communication systems.

Forming can increase the spectral efficiency of the wireless communication system. It allows multiple users to share the same frequency band without any interference from each other. And, it offers more efficient use of the available frequency spectrum to serve more users.

It reduces the interference of other signals in the same frequency band by directing the signals in a particular direction. As a result, forming offers more reliable communication and reduces a good number of dropped calls or lost data packets.

Improving the quality of the transmitted signals reduces interference and increases the communication system’s capacity. As a result, more users can be served, which results in more efficient use of available resources.

Since the signals are directional, it increases the security of the wireless communication system. In addition, directing the signals in a specific direction reduces the impact of eavesdropping and misuse of transmitted data.

Limitations of Beamforming:

Though Forming offers many advantages, it has its own limitations too. So let us have a closer look at those limitations.

Beamforming employs very complex signal processing algorithms that are computationally very intensive. Therefore it consumes more power, leading to a higher cost for communication system maintenance. In addition, the number of antennas and the antenna array’s size increases the beaming process’s complexity since the steering vector needs to be calculated for each antenna element.

Forming directs the signals only in a specific direction, therefore, a very limited coverage area. Therefore, an area outside the beam of direction needs additional resources to provide coverage.

Implementation of Forming is more expensive due to the need for additional Hardware, multiple antennas, and specialized signal processing algorithms.

Beamforming may be affected considerably due to the interference of reflective surfaces, such as buildings and other structures. Therefore the signal may be scattered in multiple directions, which may result in reduced signal quality and increased interference.

Beamforming is also affected by the mobility of communication devices. The direction of the beam needs to be adjusted continuously to maintain communication; otherwise, it will result in reduced performance and increased complexity in communication.

It requires regular calibration and maintenance to keep the beam direction constant. That needs specialized personnel to perform calibration and maintenance tasks. That may lead to an increase in operational costs.

Forming is sensitive to the channel impairments, such as fading and noise. These factors directly impact the performance of the algorithm. In order to maintain high levels of performance, it must be able to adapt to the changes in channel impairments. It may result in additional complexity and required resources to maintain the challenging channel conditions.

It required precise calibration of antenna arty. Even a minute variation in the relative position and phases of antenna elements can change the direction of the beam. Therefore, it requires a high degree of precision and accuracy in the calibration process, which is very challenging to achieve and maintain.

In time Varying channels, the direction of the beam and channel condition changes rapidly, which needs frequent adjustments to the algorithms. It may result in reduced performance and increased complexity.

Applications of Beamforming:

 Wireless Communications:

It is widely used in wireless communication for various applications to improve quality and reliability.And also, it is employed in MIMO systems, LTE and 5G networks, WLANs, and WSNs.

It is employed in cellular networks, particularly in Long Term Evolution (LTE) and 5G systems, to improve coverage and capacity and reduce interference.

Forming is used in Wireless Local Area Networks to maintain the latest Wi-Fi standards, such as 802.11ac and 802.11ax. In addition, it helps to direct the transmission power toward the user. As a result, WLANs can achieve better coverage, increased throughput, and reduced interference.

It is also used in radar systems to improve radar measurements’ resolution, range, and accuracy. With the help of Beamforming, radar systems can be enhanced in target detection and tracking.

To improve performance and reliability, Forming is used in satellite communication. Using it in satellite communication systems can improve coverage, increase capacity and reduce interference.

Beamforming is a key technology in wireless communication that enables improved performance. It is also employed in MIMO (Multiple Input, Multiple Output) systems to improve capacity and coverage. In addition, it also enhances the channel quality.

It is used in LTE and 5G networks to improve the quality and coverage of the wireless signal.

Wireless sensor networks use Forming to direct signals toward the users.

Medical Imaging:

Beamforming is used in medical imaging, particularly in ultrasound imaging and magnetic resonance imaging (MRI). It is used to improve the quality and accuracy of the images produced.

In ultrasound imaging, Beamforming is used to improve the quality and accuracy of the image produced. It is used in ultrasound to direct the waves in a particular direction to enhance the image quality. And the accuracy of the measurements can be increased.

When ultrasound waves are emitted from the transducer, they spread in all directions. In order to produce a clear image, the waves are directed in a particular direction. The Beamforming can control the phase and amplitude of the individual ultrasound signals. By adjusting to the parameters, the ultrasound waves can direct toward the target tissue. The returning echoes can be focused in a particular direction to produce a clearer image with less noise and improved resolution.

Magnetic Resonance Imaging (MRI) is used to direct the magnetic field in a particular direction to improve the imaging quality. MRI uses strong magnetic fields to produce images of the inside body parts. The magnetic fields can also cause interference, and other types of noise can affect the quality of the images. The noise source can be reduced by using Beamforming, and the image can be improved. It controls the magnetic fields in the right direction to produce images with greater contrast and accuracy. By controlling the magnetic field in this way, the MRI scan can complete more quickly and reduce the amount of time the patient needs to spend in the MRI machine.

It is a proven technology employed in medical imaging to get improved image quality and accuracy.

Sonar and Radar Systems:

In sonar and radar systems, the signal processing technique of Beamforming is employed to enhance the signal-to-noise ratio of received signals. Further, it increases the directionality of the signal transmission or reception.

In sonar systems, it is used to focus the energy of the transmitted acoustic signals into a specific direction to improve the detection of hidden objects. Besides, it reduces the background noise.

It is used to form a narrow, steerable beam of radio waves directed toward the target to enhance the detection. In addition, it reduces interference from unwanted signals.

Both Sonar and Radar employed Beamforming for more efficient and effective use of the transmitted power and to minimize interference and jamming.

Acoustic Signal Processing:

The Signal Processing technology of Beamforming is widely used in Acoustic Signal processing to improve directionality. Some of the applications of Beamforming in Acoustic signal processing are:

  • Sound Source Localization
  • Noise Reduction
  • Room Acoustics
  • Active Noise Control
  • Speech enhancement
  • Sonar Imaging
  • Speech separation

It can be used in Sound Source Localization to determine the direction of arrival of an acoustic signal. An array of microphones are used to collect the acoustic signals. The Beamforming algorithm will calculate the signal’s arrival direction by analyzing the relative time delays between the signals received at each microphone. That data can be used to determine the location of the sound source. It is useful in speech recognition and sound source tracking.

Beamforming can be used to reduce unwanted background noise in an acoustic signal by suppressing the noise from a specific direction. And it enhances the desired signal. This is because the suppression algorithms of Beamforming will reduce the noise.

Further, it can be used to analyze the acoustics of a room. It will construct an acoustic map that shows the distribution of sound pressure levels across the room.

Besides, it can be used to reduce unwanted noise in a specific location. For that, it uses an array of microphones and speakers to generate an anti-noise signal that cancels out the unwanted noise.

Beamforming improves speech intelligibility in noisy environments by suppressing the noise and enhancing the speech signal.

In sonar imaging forming, it creates an acoustic image of the target by transmitting a beam of sound energy and collecting echoes to form a focused image of the target.

In Speech Separation, it is used to separate speech signals from multiple audio sources. It separates the speech signals by combining signals from multiple microphones and suppresses the interference.

Acoustic signal processing is the processing of sound signals. Beamforming is used to improve the directionality. And it focuses on these signals.

Implementation of Beamforming:

 Digital Signal Processing:

The implementation of Beamforming in digital signal processing:

The implementation of Beamforming in digital signal processing typically involves many complex procedures. It involves three main subsets of processing: signal processing, array processing, and mathematical algorithm computation. Here are the steps of processing.

  • Signal Acquisition
  • Signal Pre-processing
  • Delay Calculation
  • Weight calculation

The first step involving is the processing of acquired signals. The signals are acquired through an array of microphones and sensors. These signals are converted into a digital signals. The computer or digital signal processor then processes the digital signal. Normally the signals are sampled at a high rate to represent the signals more accurately in the digital domain.

Signal pre-processing is the next step of signal processing. In pre-processing, filtering or normalizing the signals is done. It removes unwanted artifacts or biases. And it ensures that the signals are high quality and free from any unwanted noise or distortion. Generally, the pre-processing step includes the removal of DC offsets and signals to normalize, filter, and remove unwanted frequencies from the signal.

After pre-processing the signal, the relative time delay between the signals received at each antenna element in the array needs to be calculated. This process is the cross-correlating of the signals. Delay calculation is done using signal processing techniques such as auto-correlation or cross-correlation. The relative time delay measures the difference in the arrival time of the signals in each element in the array. The relative time delay calculation is one of the critical components in calculating Beamforming weights.

Once the relative time delay was computed, the Beamforming weights can be calculated based on this. It is solving the system of equations that describes the relationship between the relative time delays and weights. The Beamforming weights are the relative gain or attenuation applied to each signal received from an element in the array to form a beam that is directed toward a particular place. Several methods are used to calculate the beaming weights, such as the delay and sum method, minimum variance method, and maximum signal-to-noise ratio method.

Once the weights have been calculated, the Beamforming process can be performed by combining signals using Beamforming weights. Once the process is completed, the Beamforming weights can be implemented the beamformed signal will be focused in a specific direction. As a result, the beamformed signal has improved directionality and signal-to-noise ratio compared to the individual signals. Depending on the requirement of the application, the Beamforming process can be done in real-time or offline.

Signal analysis is the final step in digital signal processing. In this process, necessary signal analysis is done on the beamformed signal. The signal analysis includes detecting targets, localizing sound sources, and estimating parameters such as the direction of arrival or the signal’s frequency content. It is a critical step to determine the effectiveness of Beamforming and understand the data contained in the beamformed signal. There is a wide range of signal analysis techniques, such as time-domain analysis, frequency-domain analysis, and time-frequency analysis. The specific implementation may vary depending on the application and the type of Beamforming being performed.

 Hardware-based Beamforming

In Hardware based Beamforming, dedicated hardware components are needed to perform the calculations in real-time. It is a cost-effective solution for applications that require real-time Beamforming. Hardware-based Forming allows high-speed processing with lower computational requirements than software-based solutions.

Here are the steps involved in Hardware based Forming:

  • Signal Acquisition
  • Delay Calculation
  • Beamforming Weight Calculation
  • Signal Analysis

The first step is to select the signals that are to be processed. Next, signals from an array of microphones or sensors will be collected. Then they need to be converted into electrical signals that the Hardware can process. Finally, the signals are sampled at a higher rate to ensure that the signals are accurately represented in the digital domain.

The next step is signal pre-processing on the signals. The signals are filtered or normalized at this step to remove any unwanted artifacts or bases. It ensures that the signals are high quality and free from unwanted noise or distortion. Common pre-processing step such as removing DC offsets, normalizing signals, and filtering the signals to remove unwanted frequencies is employed.

Once the signals are pre-processed, the relative time delay between the signals received at each element in the array needs to be calculated. The dedicated hardware components, such as delay lines or digital signal processors, are doing the delay calculations. The relative time delays are computed by measuring the difference in arrival time between the signals at each element in the array. It is the critical component in the calculation of Beamforming weights.

The next step is the Beamforming weight calculation. Once the relative time delay is calculated, based on that, the beamforming weight can be calculated. It typically solves equations that describe the relationship between the relative time delays and the Beamforming weights. The weight represents the relative gain or attenuation applied to each signal in the array in order to form a beam that is directed toward a specific location. There are several methods, such as the delay-and-sum method, the minimum variance method, and the maximum signal-to-noise ratio method, are employed.

Once weights are calculated, the forming process can be done using dedicated hardware components such as digital signal processors or application-specific integrated circuits (ASICs). This beamformed signal is focused on a specific direction with improved directionality and signal-to-noise ratio compared to the individual signals. In addition, the Beamforming process is achieved in real-time. That provides fast and accurate results.

The final step is signal analysis. The beamformed signal undergoes signal analysis such as target detection, localizing sound source, and estimating the parameters such as arrival and frequency content of the signal. This step is critical to evaluate the effectiveness of the beamformed signal. There is a wide range of signal analysis techniques that are used, including time-domain analysis, frequency-domain analysis, and time-frequency analysis.Hardware-based Beamforming provides a robust and efficient real-time solution for processing signals.

Software-based Beamforming:

The software-based Beamforming is flexible and cost-effective. It is the best alternative to Hardware based Beamforming. It implements the Forming using digital signal processing algorithms. All the steps discussed above for Hardware based Beamforming are repeated here in the software-based Beamforming. The implementation of software-based Beamforming requires a high-performance computer and specialized software. However, it can test different Beamforming algorithms and configurations without the need for expensive Hardware very easily and very quickly. Therefore, software-based Beamforming is an attractive solution for many applications, especially in the fields of audio and speech processing.

Future Development in Beamforming:

Emerging Trends in Wireless Communications:

Implementing Beamforming technology in wireless communication expects further advancement and improvement in the following branches of Wireless communication:

Beamforming could provide a more efficient and effective communication system. One of the primary areas where Beamforming will play a crucial role is deploying 5G networks.

Millimeter-Wave Technology is expected to see significant growth with the help of Beamforming technology. The implementation of Beamforming in millimeter-wave (mmWave) technology will provide faster speeds and greater capacity for wireless communication. This growth can meet the future demands of data-intensive applications such as high-definition video streaming and virtual reality.

Combining artificial intelligence and machine learning algorithms into Beamforming technology will lead to more efficient and effective techniques. With AI-based Beamforming, wireless communication networks will be able to dynamically adjust the beam patterns based on the requirement of the environment. Thereby it will provide improved performance and increased efficiency.

Implementing Beamforming with antennas leads to the development of smart antennas. The smart antennas can dynamically adjust the beam patterns based on the surrounding environment. Furthermore, these smart antennas are integrated into wireless communication networks. Therefore, it can provide more efficient and effective communication.

The Multiple Input, Multiple Output system is expected to use Beamforming technology on a large scale. As a result, it will be used more in wireless communication networks. In addition, with large-scale MIMO, multiple antennas will be used to transmit and receive signals. That will lead to improved performance and increased capacity for wireless communication.

Integrating Beamforming technology with cognitive radio and cooperative communication will take wireless technologies to the next level. And it will lead to new and innovative solutions for wireless communication.

Wireless communication networks provide a more efficient and effective communication system with the integration of Beamforming. As a result, it will further support the growing demands of data-intensive applications. In the future, it can meet the needs of a rapidly growing user base.

Artificial Intelligence and Machine Learning

Artificial Intelligence (AI) and Machine Learning (ML) have revolutionized the field of beamforming technology in wireless communications. In the future, AI and ML algorithms are expected to play a significant role in the development of beamforming systems, leading to several key advancements.

Dynamic Beamforming is one of the key areas where AI and ML algorithms will have a significant impact. Currently, a Beamforming system is limited by the static nature of its beam patterns. AI algorithms analyze the surrounding environment and determine the optimal beam pattern for a given situation. As a result, Beamforming can implement to improve signal quality and increase capacity. AI and ML algorithms are expected to impact real-time optimization significantly. With AI and ML algorithms, Beamforming systems will be able to optimize their performance in real time. AI algorithms can be used to monitor network performance. It can adjust the beam pattern in real time based on the changing environment and user demand.

AI and ML algorithms are expected to play a crucial role in Interference management. Interference is the major challenge in wireless communications that downgrade the signal quality and reduce performance. With AI and ML algorithms, Beamforming systems can effectively manage interference. That will lead to improving the reliability and stability of wireless communication networks. In addition, the AI algorithms can identify the mitigate sources of interference and improve the signal quality, and increase capacity.

A self-organizing network is an important area where Beamforming technology is going to revolutionize. The self-organizing networks can dynamically adjust their parameters based on the surrounding environment and user demand. AI and ML algorithms can be used to improve self-organizing networks, to increase performance and efficiency. In addition, AI algorithms are used to adjust the beam pattern based on user demand dynamically.

Predictive maintenance is another area where AI and ML algorithms are expected to impact future development significantly. Normally Beamforming systems require regular maintenance to ensure optimal performance. With AI and ML algorithms, Beamforming systems can predict and prevent potential issues. That will lead to improved reliability and reduced maintenance costs. AI algorithms are used to monitor the performance of the Beamforming system. It can predict potential issues and allow proactive maintenance and reduce downtime considerably.

Therefore, integrating AI and ML algorithms into Forming is expected to lead to significant advancements in future wireless communication.

5G and Beyond:

5G and Beyond Wireless communication network is expected to play a crucial role in the future with the implementation of Hybrid Beamforming. The latest beamforming technology allows the 5G and Beyond wireless technology network to adjust their beam patterns according to the environment dynamically. That will provide improved performance and increased efficiency.

With the advancement of Beamforming, 5G and beyond networks will be benefited in the following areas;

Implementation of Beamforming technology is expected to play a crucial role in increasing the capacity of 5G and beyond networks. It is because the future network can dynamically adjust the beam patterns based on the surrounding environment and user demand. Therefore, it will help to allocate the available spectrum more efficiently to increase the capacity and improve signal quality.

It will increase the reliability of 5G and Beyond networks by effectively managing interference and improving signal quality. It will lead to more reliable and stable networks. And will provide an improved user experience and reduced downtime.

Implementation of Forming can improve the security of 5G and Beyond networks. It can detect and prevent malicious activities by dynamically adjusting the beam patterns. In addition, it will ensure the confidentiality of transmitted data.

It helps to enable low latency and high-speed communication in 5G and Beyond networks. Furthermore, since it can dynamically adjust the beam patterns, it will allow the users to use the available spectrum more efficiently.

Integrating AI and ML algorithms into beamforming technology will also lead to significant advancements in the near future with real-time optimization and improved performance. The significant role of Beamforming technology is the significant impact on network capacity and network coverage. Beamforming technology can dynamically adjust the beam patterns, resulting in improved signal quality and increased coverage. It will improve the network coverage in rural and remote areas.

With the integration of Beamforming technology with 5G and Beyond wireless networks, reliability can also expect to increase. It can check the interference more effectively, thereby it can offer more reliable and stable networks with reduced downtime.

It will provide a better user experience and increase trust in the technology. In addition, beamforming technology is expected to be crucial in enabling low latency and high-speed communication in 5G and future networks.

In conclusion, the integration of beamforming technology into 5G and future wireless networks will provide improved performance, increased efficiency, and enhanced security. Additionally, the integration of artificial intelligence and machine learning algorithms will lead to significant advancements in the future, providing real-time optimization and improved performance.

Significance of Beamforming in Signal Processing:

The Beamforming signal processing technique plays a significant role in modern wireless communication networks. The objective of Beamforming is to form a directional signal beam towards a specific target. Then, it transmits the signals unidirectional.

It improves signal quality by directing the signals to a specific target. And it reduces the interference signal strength and enhances the signal-to-noise ratio with a better user experience.

The efficiency is very much increased. It allows more efficient use of the available spectrum. In addition, it enhances the security of wireless communication networks and prevents malicious activities, and ensures the confidentiality of transmitted data.

It increases the coverage of wireless communication networks by dynamically adjusting the beam patterns based on the surrounding environment.

It enables low latency networks by directing the signals towards a specific target leading to more efficient use of the available spectrum and improved signal quality.

Beamforming is a critical signal-processing technique that provides numerous benefits to wireless communication networks. It can Improve signal quality, efficiency, and enhanced security with increased network coverage. In addition, it provides reliable high, quality wireless communication.

Beamforming Research and Development:

The future of Beamforming research and development is more exciting and promising. It has numerous opportunities for innovation and growth. The tremendous increase in demand for high-speed, reliable, and secure wireless communication drives the development of advanced Beamforming techniques and technologies.

Some of the key areas of research and development in the future of Beamforming include:

Integrating artificial intelligence (AI) and machine learning (ML) algorithms with Forming will play a crucial role in the future of wireless communication. AI and ML are used to optimize beamforming algorithms and improve accuracy, which leads to improved signal quality and efficiency.

The development of 5G and beyond networks needs more advanced techniques to handle the increase in data rate quality and high-speed data transmission requirements. Therefore, research and development in this area will focus on developing Beamforming techniques that support the high-speed and low-latency requirements of 5G and beyond networks.

The development of massive MIMO (multiple-input, multiple-output) systems is a key area of research in the future of Beamforming.

Millimeter-wave communications is an up-and-coming new technology. It can offer increased bandwidth with capacity. It is the key area of research in the future. Research in this area will focus on developing new techniques to transmit signals at millimeter-wave frequencies effectively. It can overcome the challenges posed by the unique propagation characteristics of millimeter-wave signals.

Hybrid Beamforming is a very promising fast, growing technology. It combines both digital and analog beamforming techniques together. As a result, it improves signal quality and efficiency. Research in this area will focus on how to balance digital and analog Beamforming.

In conclusion, the future of Beamforming research and development is very bright. It has numerous opportunities for innovation and growth. The future is poised to play a critical role in wireless communication.

Conclusion:

In conclusion, Beamforming is a critical technology in the field of signal processing and wireless communication. It enables the directional transmission and reception of signals. In addition, it improves signal quality and reduces interference. The future of beamforming research and development is exciting, with numerous opportunities for innovation and growth.

It focuses more on the areas such as artificial intelligence and machine learning, 5G and beyond networks, massive MIMO systems, millimeter-wave communications, and hybrid Beamforming. The continued development of Beamforming technologies will play a critical role in meeting the increasing demand for high-speed, reliable, and secure wireless communication. In addition, it will bring new advancements in signal processing.



About the author

prodigitalweb
